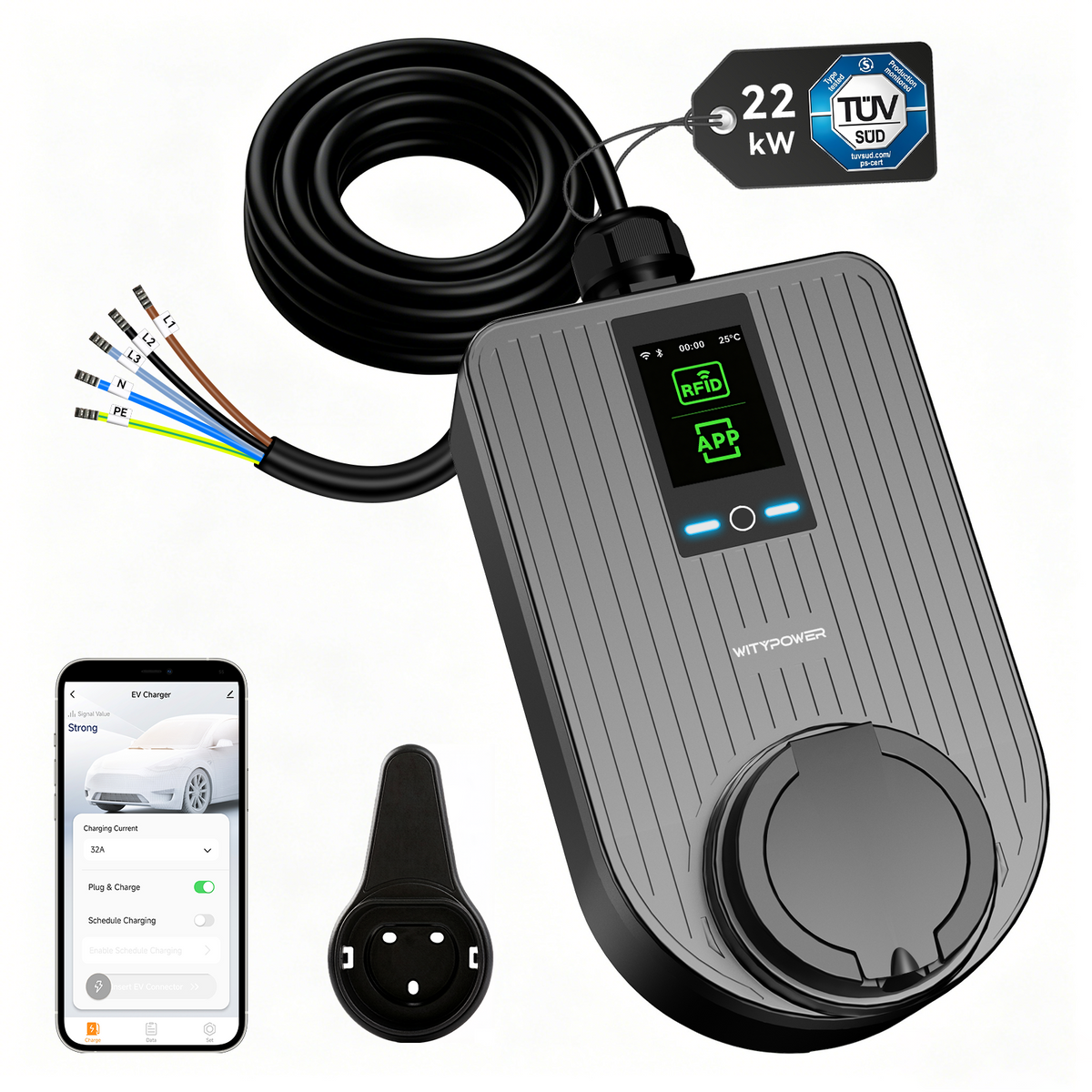

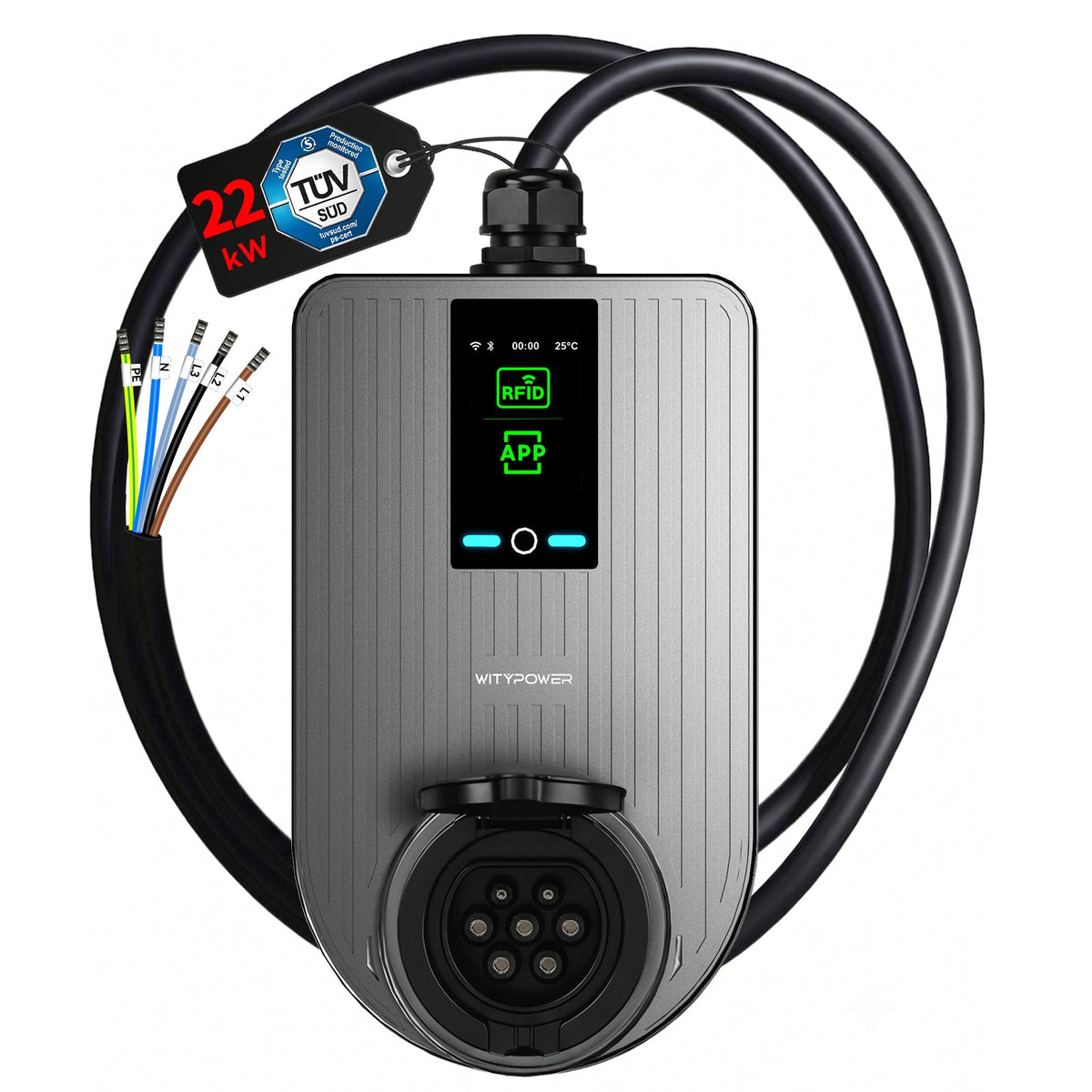

Q Series 22 kW EV charger
Hardwired inputCharging power
Input connection
For permanent installation by a qualified installer.
Check shipping costs
Estimated shipping for one unit of this model from Poland. The final charge is calculated at checkout for your complete order and delivery address.
Delivery areas and exclusionsYour dedicated charging point at home. This Q Series configuration pairs a fixed, hardwired supply with a Type 2 socket for a detachable vehicle charging cable.
- Up to 22 kW · three-phase

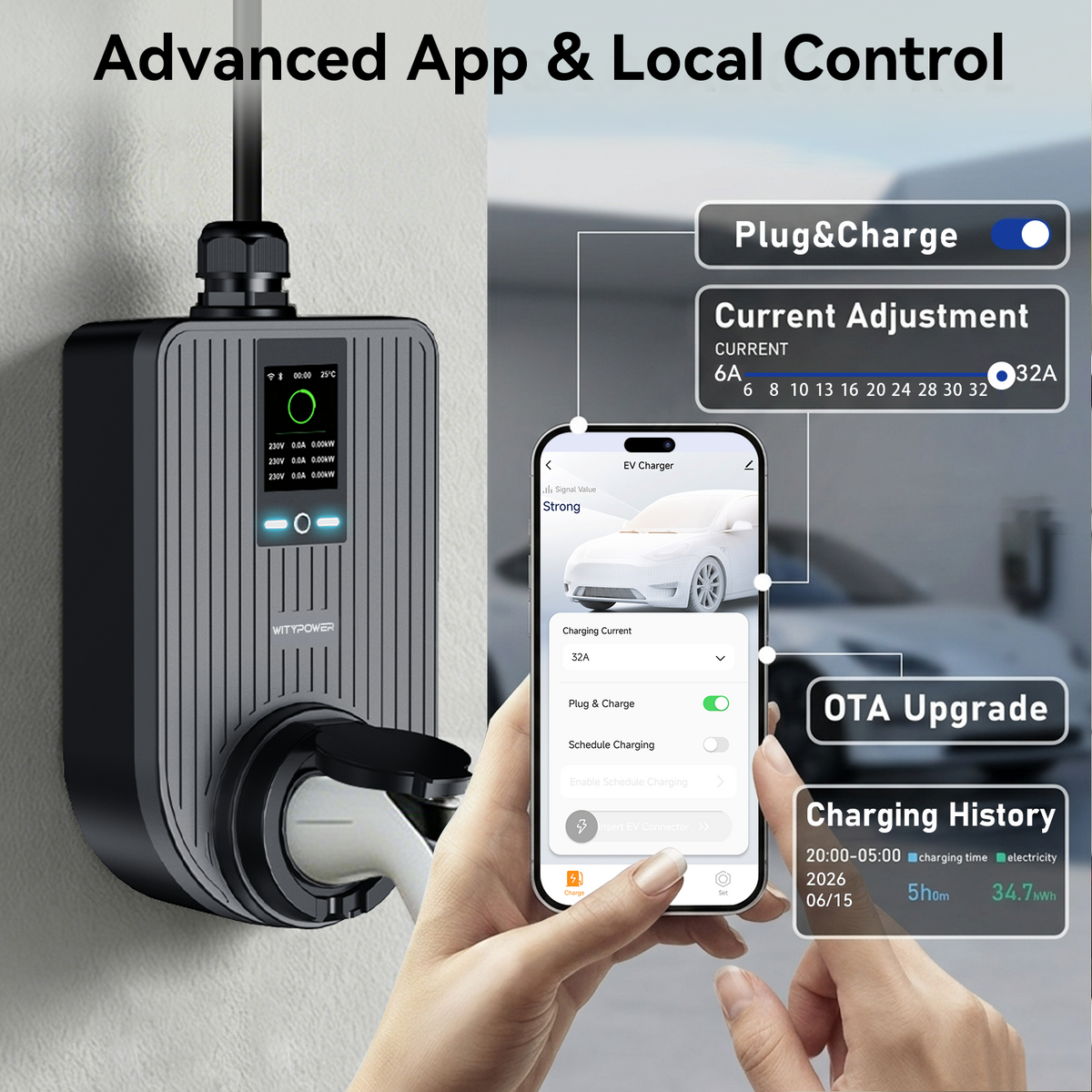

- App and RFID control
- Type 2 socket · detachable vehicle cable
AT A GLANCE
Technical specifications
| Charging power | 22 kW |
|---|---|
| Rated voltage | 400 V AC |
| Power supply | Three-phase |
| Charging current | 32 A per phase |
| Rated frequency | 50 / 60 Hz |
| Supply connection | Hardwired |
| Vehicle connection | Type 2 socket; detachable vehicle cable |
| Charger dimensions | 330 × 175 × 115 mm |

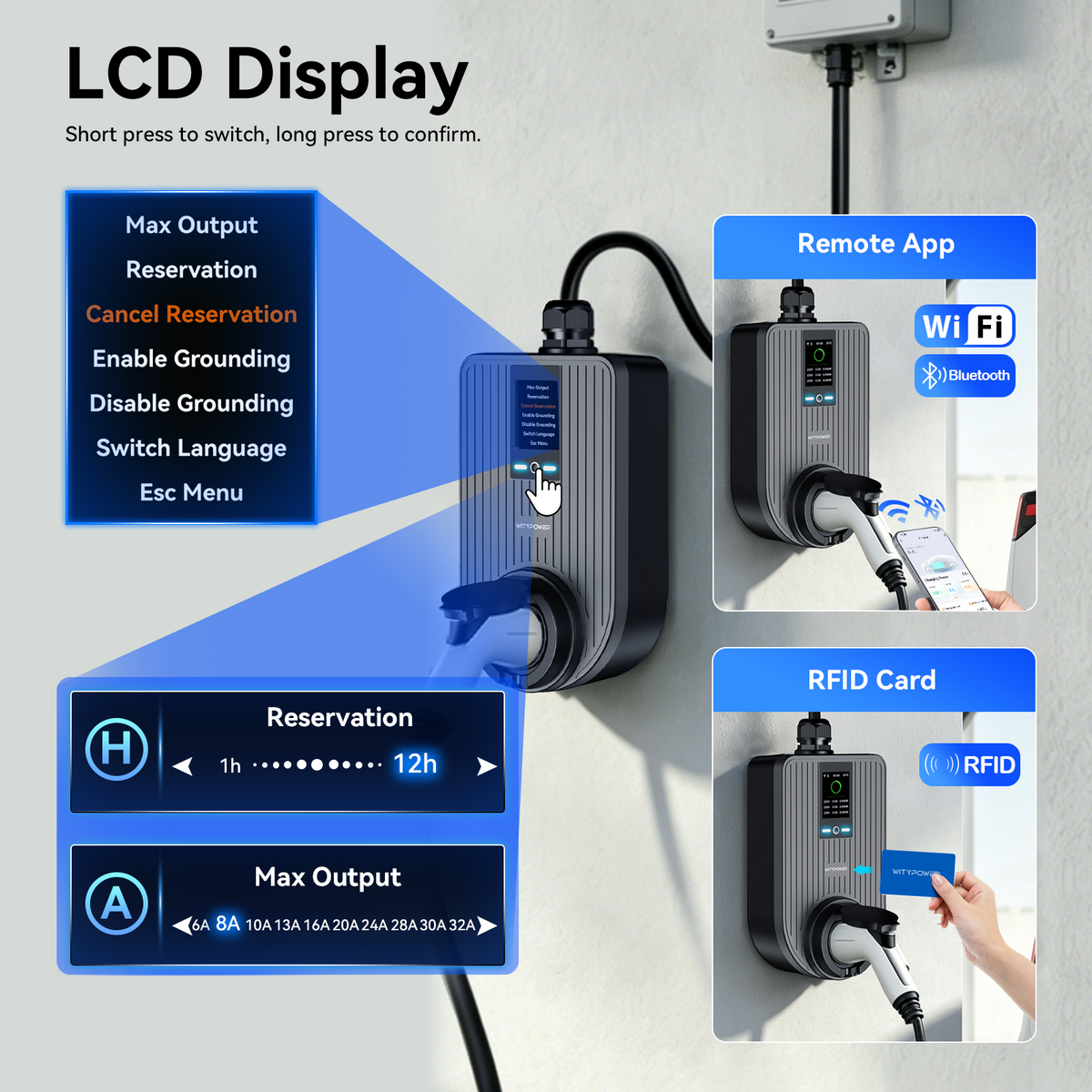

| Display | 2.8-inch LCD |
| Connectivity | Wi-Fi and Bluetooth |
| Control | App and panel buttons |
| Housing protection | IP66 control box |
| Operating temperature | −30 °C to +55 °C |
Q Series · Features
Enlarge image
Smart charging
BEFORE YOU CHOOSE
Questions about your Q.
Power, connections and the practical details for your selected EV charger.
Which power level should I choose?
This configuration is rated at 22 kW: 400 V, three-phase, 32 A per phase. Q 11 kW uses 16 A per phase; Q 22 kW uses 32 A per phase. Check your car’s AC charging limit and your electrical supply. A 22 kW EV charger cannot make a car with an 11 kW AC limit charge at 22 kW.
See technical specificationsHow is this version connected and installed?
This Q is the hardwired version for fixed installation. A qualified installer must make the electrical connection and check the supply and protection. Choose the CEE version if you need Q’s removable, wall-mounted and portable arrangement.
Do I need a separate vehicle charging cable?
Yes. Q has a Type 2 socket. Use a separate vehicle charging cable that fits this socket and your car’s AC charging inlet, with the correct current rating for your setup. The CEE or hardwired input lead connects Q to the electricity supply; it is not the cable between Q and the car.
Where do you deliver, and is shipping included?
Product prices include VAT. Shipping is charged separately and paid by the customer. Delivery availability depends on the destination and postcode. Check the delivery areas and exclusions; the applicable shipping charge is shown at checkout.
Delivery destinations and shipping chargesWhere can I get help with a return?
Use our return help for the German return address and assistance with your order. Keep your order number and EV charger model ready. Do not send a return to the dispatch warehouse.
Return helpWhere can I find the right instructions?
Visit Manuals & setup for setup guidance and product support. Follow the instructions for your exact Q model and input connection.
