WITYPOWER Q

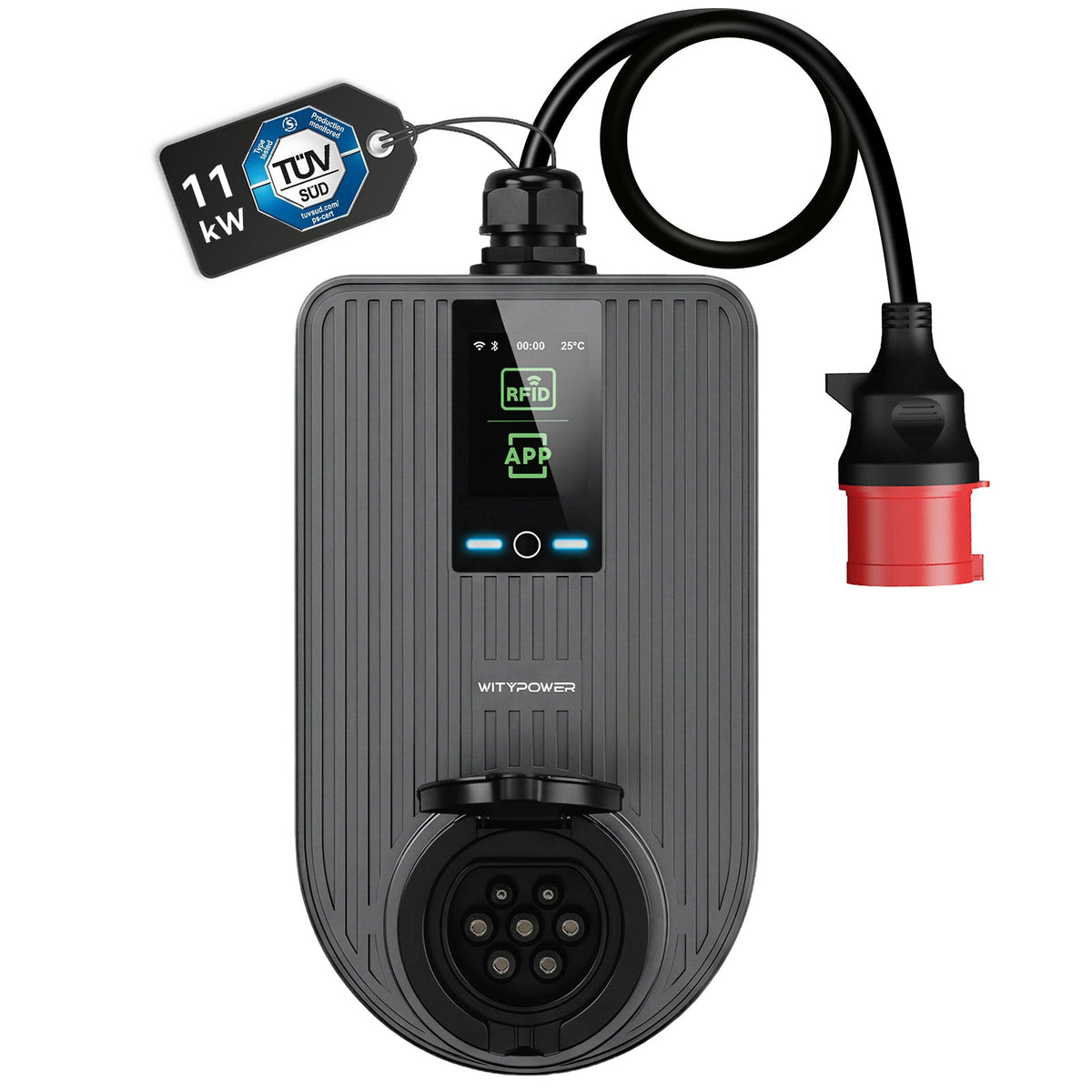

Q Series 11 kW EV charger
CEE inputCharging power
Input connection

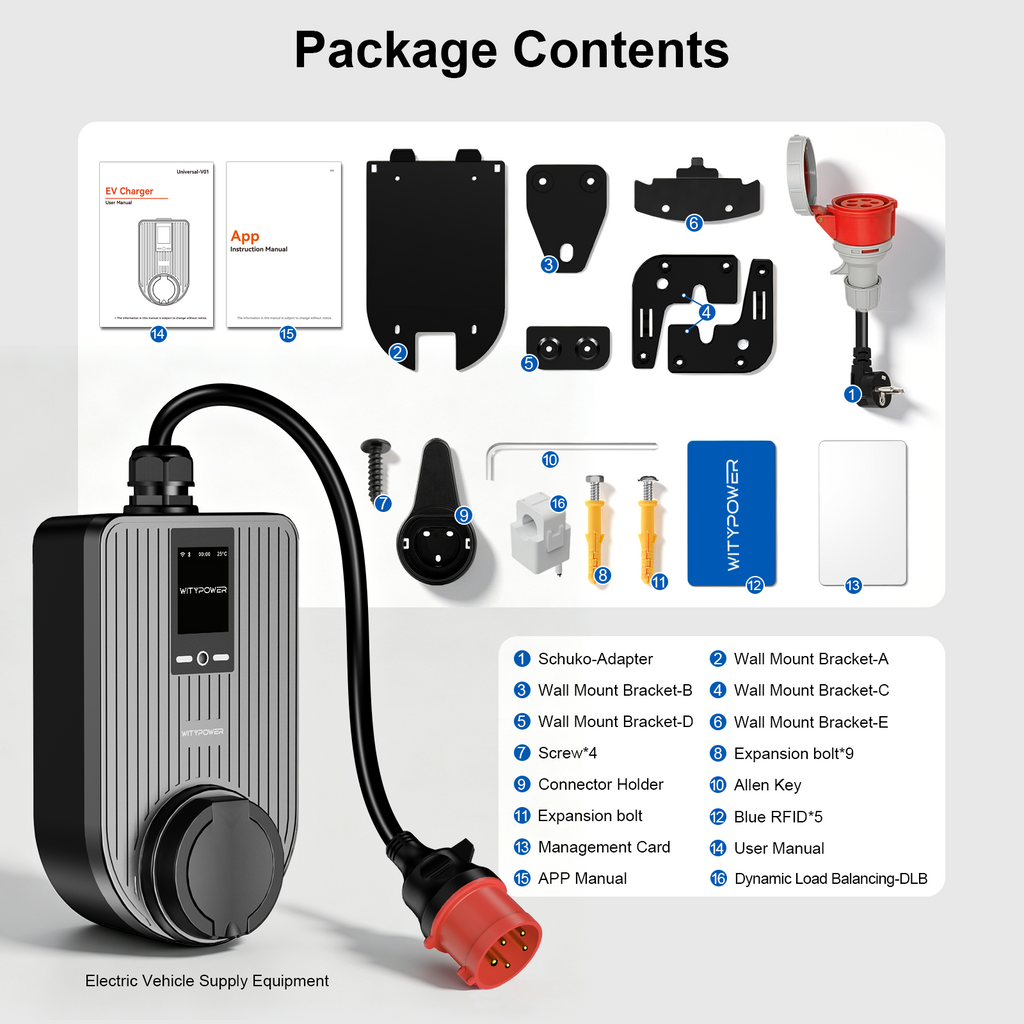

DLB set: external controller and three current transformers. Shipped together from Poland. Installation and configuration required, not included. One controller supports up to 10 compatible EV chargers.
For a suitable CEE socket with the correct current rating.

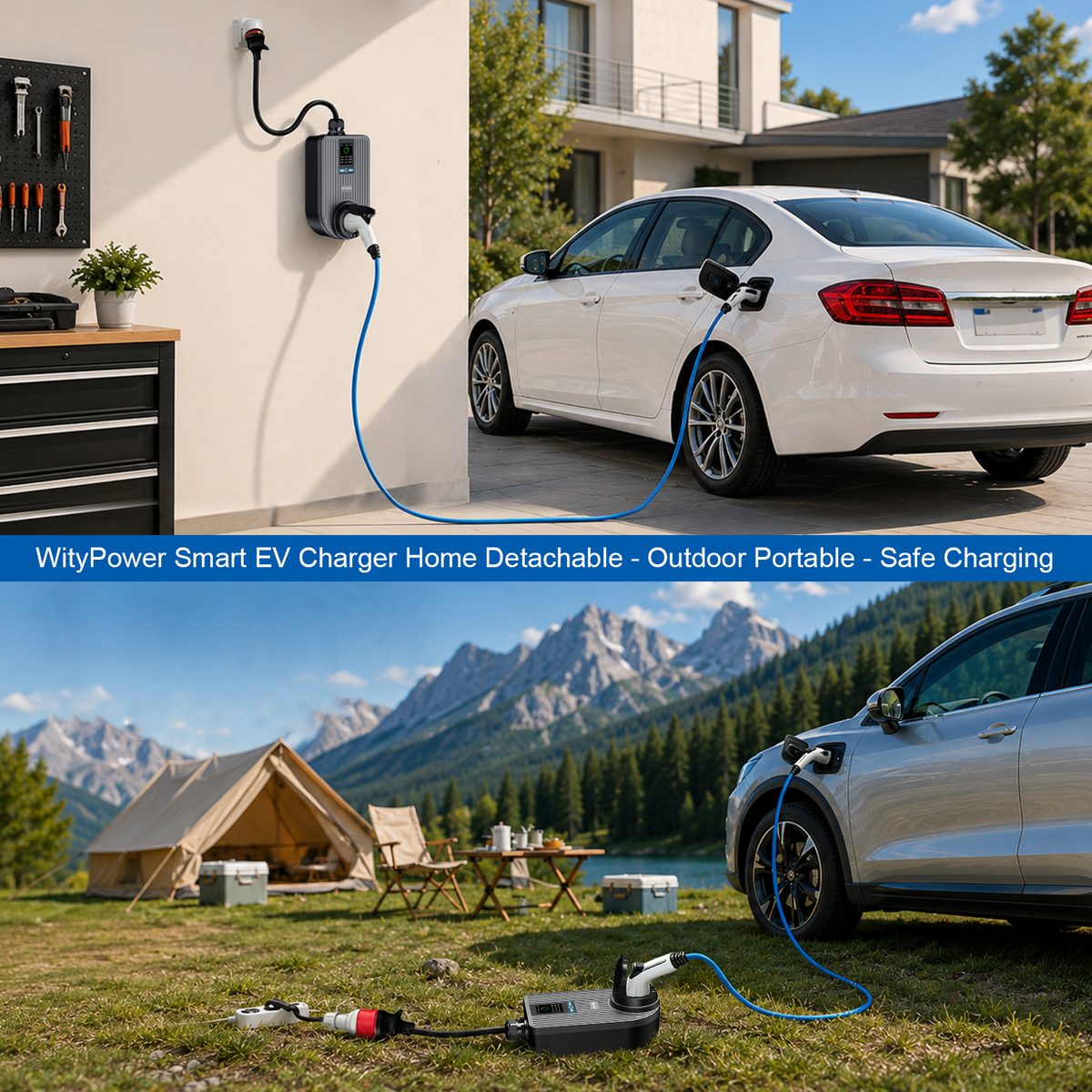

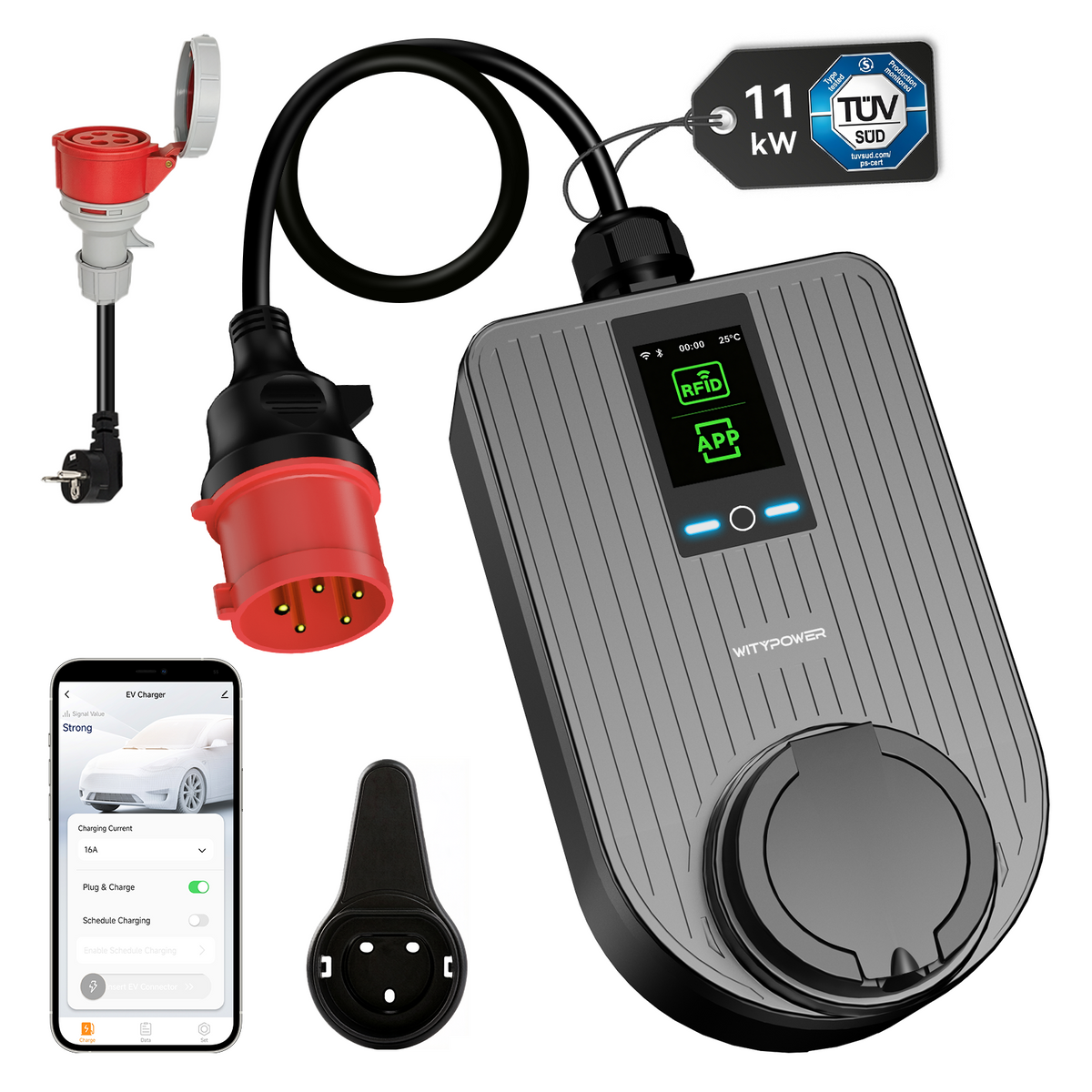

A wall-mounted EV charger at home, ready to travel to another suitable CEE-equipped location. The Q Series combines a detachable wall base with a Type 2 socket for flexible charging.
- Up to 11 kW · three-phase

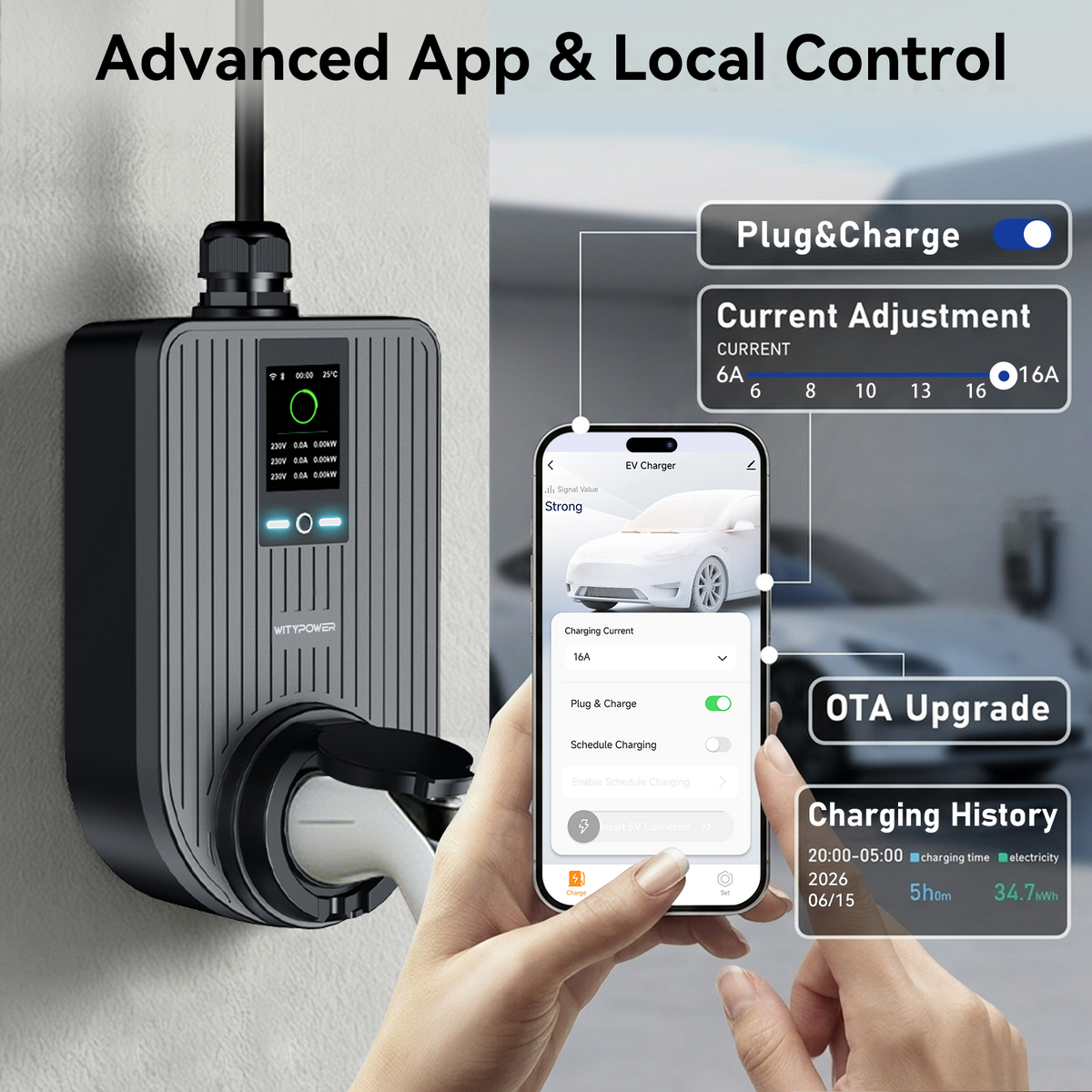

- App and RFID control
- Type 2 socket · detachable vehicle cable
AT A GLANCE
Technical specifications
| Charging power | 11 kW |
|---|---|
| Rated voltage | 400 V AC |
| Power supply | Three-phase |
| Charging current | 16 A per phase |
| Rated frequency | 50 / 60 Hz |
| Supply connection | CEE plug |
| Vehicle connection | Type 2 socket; detachable vehicle cable |
| Charger dimensions | 330 × 175 × 115 mm |

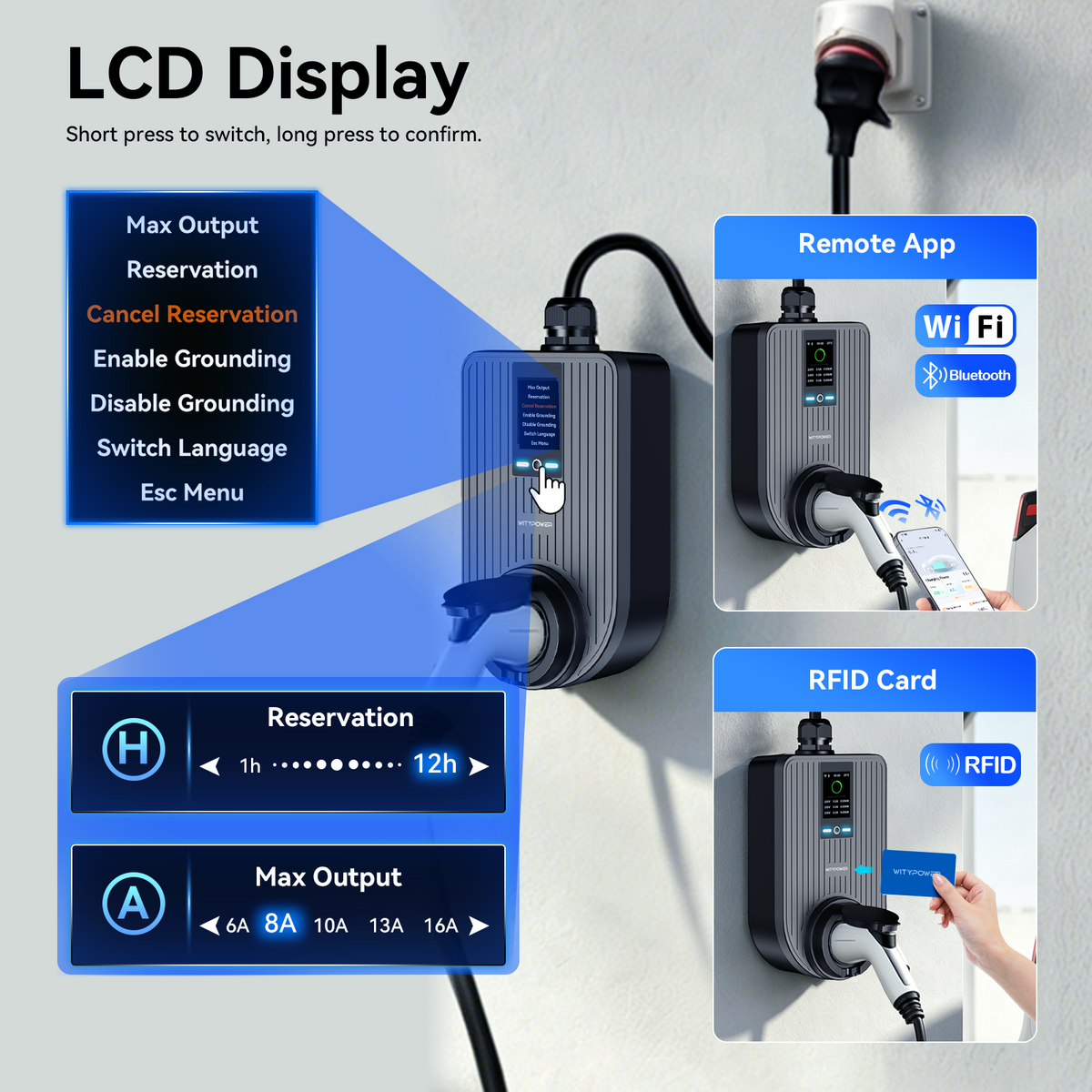

| Display | 2.8-inch LCD |
| Connectivity | Wi-Fi and Bluetooth |
| Control | App and panel buttons |
| Housing protection | IP66 control box |
| Operating temperature | −30 °C to +55 °C |
Q Series · Features
Enlarge image
Smart charging
BEFORE YOU CHOOSE
Questions about your Q.
Power, connections and the practical details for your selected EV charger.
Standalone charger or DLB set: which suits my charging location?
The standalone “Ohne DLB” option costs €299 including VAT and does not include an external DLB controller. “Mit DLB im Set” costs €319 including VAT and includes one EV charger, one external DLB controller and three CTs. Choose the set when charging power needs to adjust to other electricity use at the site and a qualified electrician can check and configure the installation. Shipping is extra; installation is not included.
What should I check before using the DLB set?
A qualified electrician must install and configure the external controller and CTs. One controller supports up to 10 compatible EV chargers; this set includes one EV charger. The current version from the Polish warehouse does not support §14a. App control is not control by the grid operator. Before buying, confirm the requirements at the location with an electrician and, where applicable, the grid operator; a CEE plug alone does not establish suitability.
Which power level should I choose?
This configuration is rated at 11 kW: 400 V, three-phase, 16 A per phase. Q 11 kW uses 16 A per phase; Q 22 kW uses 32 A per phase. Check your car’s AC charging limit and your electrical supply. A 22 kW EV charger cannot make a car with an 11 kW AC limit charge at 22 kW.
See technical specificationsHow is this version connected and installed?

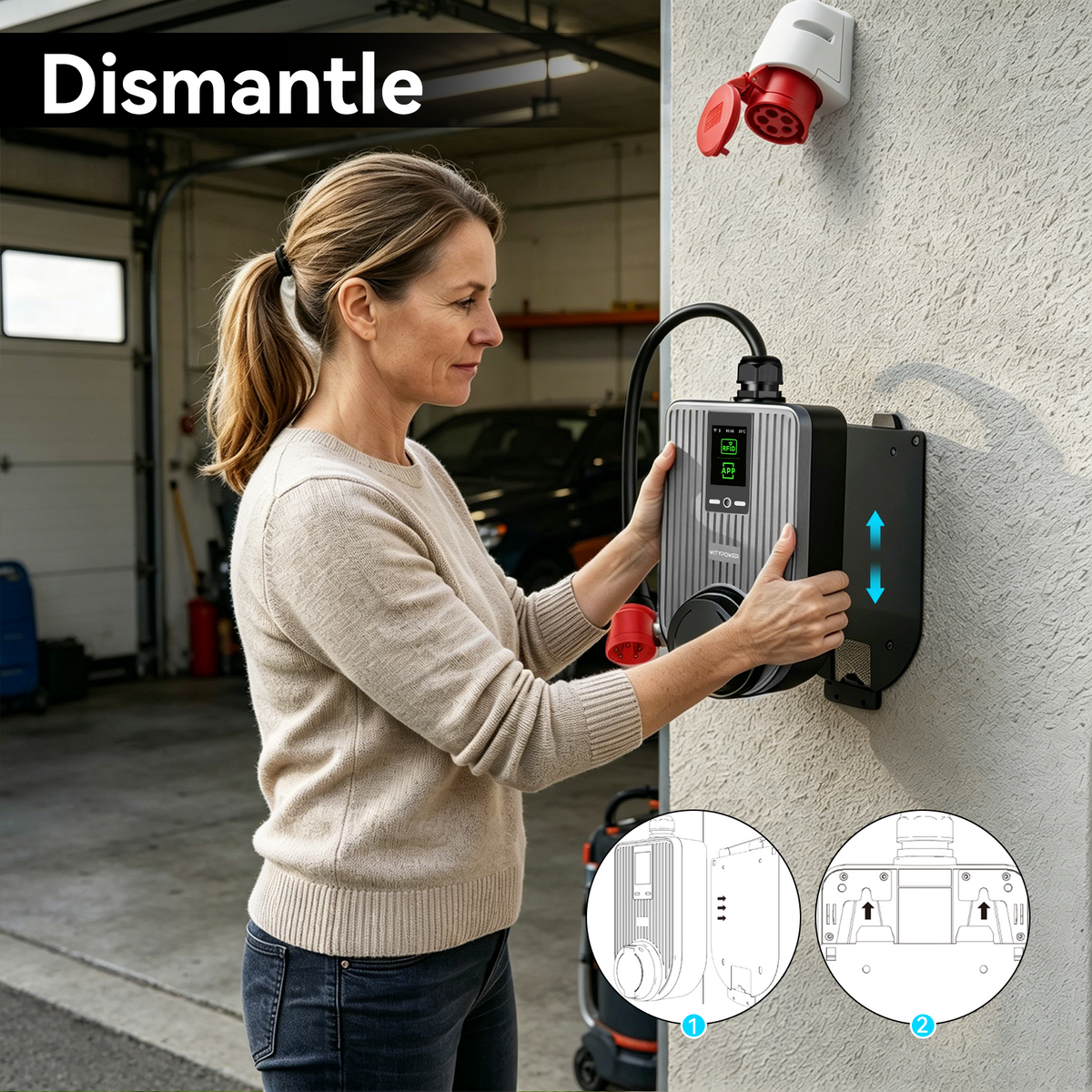

This Q has a CEE input for a suitable CEE socket, rated for the selected 16 A per phase. Have the socket, circuit and protection checked by a qualified installer. The CEE version can be removed from its wall mount for use at another suitable charging location. Stop charging and disconnect the supply and vehicle cables before moving it.
Do I need a separate vehicle charging cable?
Yes. Q has a Type 2 socket. Use a separate vehicle charging cable that fits this socket and your car’s AC charging inlet, with the correct current rating for your setup. The CEE or hardwired input lead connects Q to the electricity supply; it is not the cable between Q and the car.
Where do you deliver, and is shipping included?
Product prices include VAT. Shipping is charged separately and paid by the customer. Delivery availability depends on the destination and postcode. Check the delivery areas and exclusions; the applicable shipping charge is shown at checkout.
Delivery destinations and shipping chargesWhere can I get help with a return?
Use our return help for the German return address and assistance with your order. Keep your order number and EV charger model ready. Do not send a return to the dispatch warehouse.
Return helpWhere can I find the right instructions?
Visit Manuals & setup for setup guidance and product support. Follow the instructions for your exact Q model and input connection.
